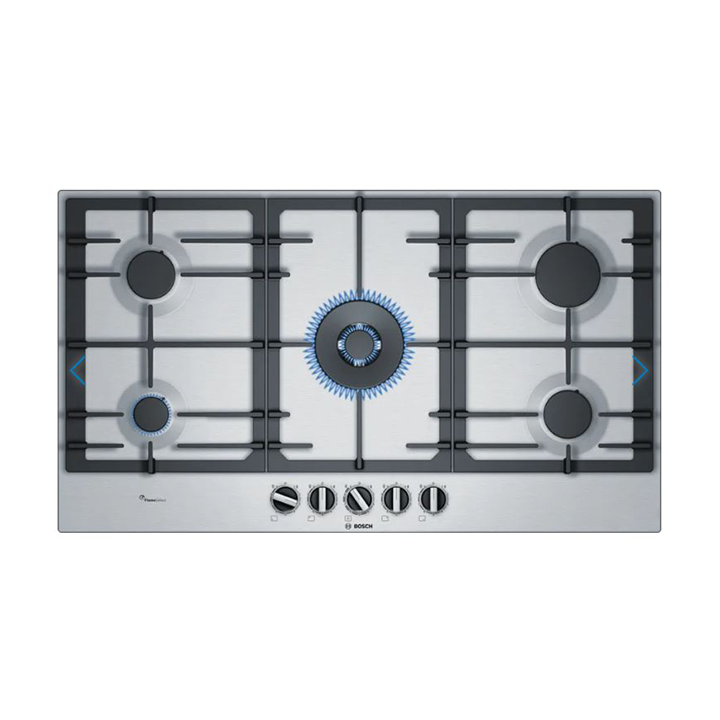

Bosch Kitchen Hob PCR9A5B90

Cooktop type

Gas cooktop

Installation type

Self-sufficient gas hobs

Width

90 cm

Number of cooking zones

5

Power of the heating elements

1 x 1.0 KW, 1 x 3.0 KW, 1 x 5.0 KW, 2 x 1.75 KW

Basic surface material

Stainless steel

Frame type

Frameless

Colour of appliance

Stainless steel

Energy efficiency of hob

58.5 %

Dimensions

53 x 915 x 520 mm

Minimum height for installation

490 mm

Maximum height for installation

502 mm

Minimum width for installation

850 mm

Maximum width for installation

852 mm

Depth for installation

45 mm

Gas connection rating

12,500 W

Voltage

220-240 V

Length electrical supply cord

150 cm

Plug type

no plug (electrical connection by electrician)

Gas connection

rear, right

Gas type

Nat gas H/E/(L) 20 (25) mbar

Alternative gas type

Liquid gas G30,31 28-30/37mbar

Included user manuals

[AR, EL, FR, DE, EN, ES, IT, NL, PT, TR]

Type of control setting devices

sword knobs

Electronic timer

No

FlameSelect

Yes

Wok burner

Yes

Type of pan support

Elongated cast iron pan support

dishwasher safe pan support

No

Ignition system

Yes

Home Connect

No

Control your hood with your Home Connect hob

No

Residual heat indicator

without

Safety device

Flame failure safety device

Type of safety device for gas

Electromagnetic for each burner

Stainless steel surface

Cast iron pan supports

FlameSelect: precisely control and adjust the flame in nine defined levels.

Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.

Ignition via control dials: just push and turn the dials to ignite the flame.

5 gas burners

Including 1 dual control wok burner: use an extra wide power range, separately controlling two flame rings.

Left front: economy burner up to 1 KW (depending on gas type)

Left rear: Standard burner up to 1.75 KW (depending on gas type)

Center front: wok burner up to 5 KW (depending on gas type)

Right rear: High-speed burner up to 3 KW (depending on gas type)

Right front: Standard burner up to 1.75 KW (depending on gas type)

Flame failure safety device: prevents unwanted gas flow when flame goes out.

Usable for: Natural gas L 25 mbar (NL)
Nat gas L/LL G25/20mbar(DE) NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar

Pre-set for natural gas

Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.

Dimensions of the product (HxWxD mm): 53 x 915 x 520

Required niche size for installation (HxWxD mm) : 45 x 850 x (490 - 502)

Min. worktop thickness: 30 mm

Power cord: 1.5 m

Connected load: 12.5 KW
